What Is DNS?
The Domain Name System (DNS) is like the phonebook of the Internet. When you type a website like www.website.com into your browser, DNS translates that human-readable domain name into a computer-friendly IP address — such as 120.22.1.234.
Without DNS, you’d have to remember the numeric IP addresses of every website you visit — not exactly user-friendly!
When you enter a website address, your computer doesn’t know where that site lives yet — so it asks a DNS resolver to find it.

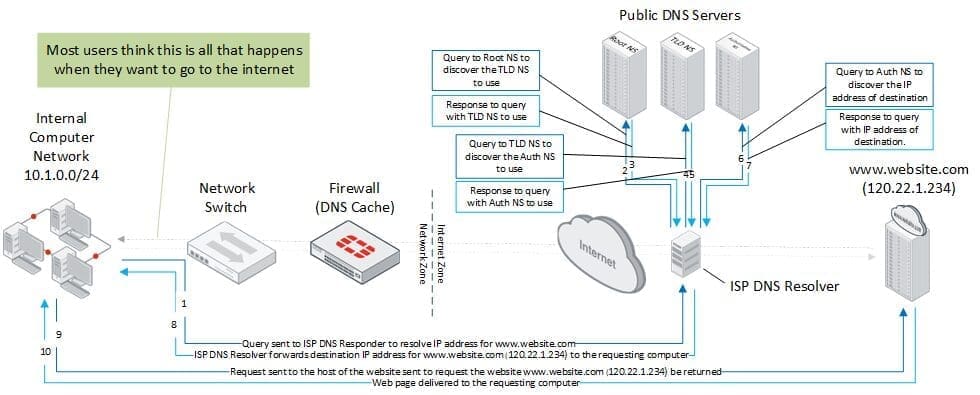

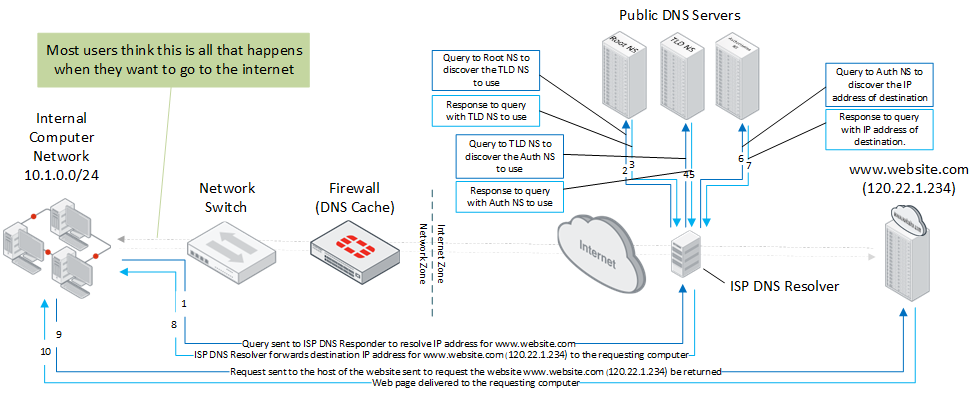

Here’s what happens step-by-step:
Your computer sends a DNS query to your local network firewall or router, which usually has a DNS cache (recent lookups stored temporarily).
If it doesn’t already know the answer, it forwards the request to your Internet Service Provider’s (ISP) DNS Resolver.
The resolver queries the Root DNS Servers, which point it to the Top-Level Domain (TLD) server (like .com or .org).
The TLD server directs the resolver to the Authoritative Name Server for that specific domain.
The Authoritative server returns the final IP address for www.website.com.
The resolver caches the result and sends it back to your computer — now your browser knows where to connect.
Once that’s done, your browser can load the website.
Most users think it’s just one step, but as your diagram shows, there are actually multiple layers of lookup and validation.
The traditional DNS process doesn’t verify who sent the response — which leaves it open to manipulation.
That’s where DNSSEC (Domain Name System Security Extensions) comes in.

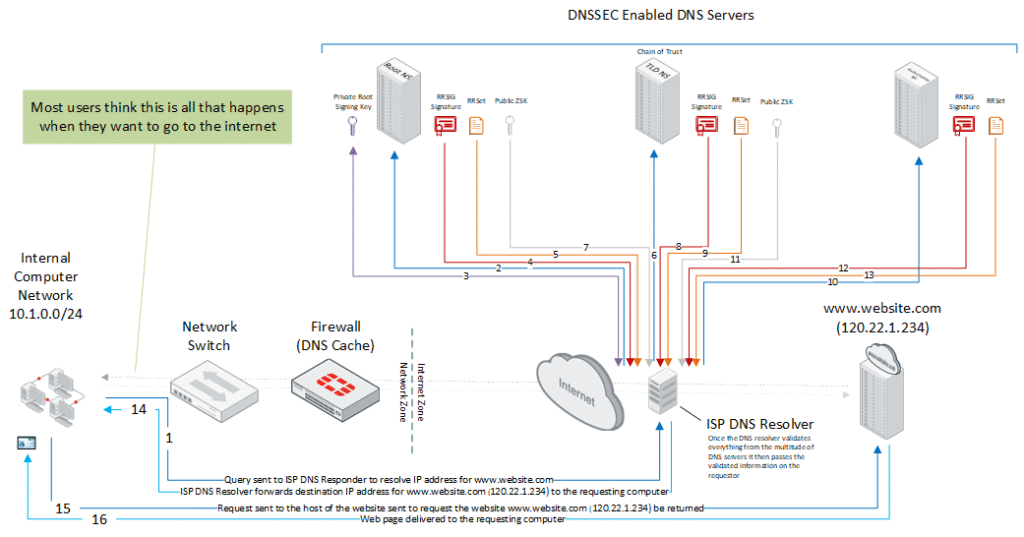

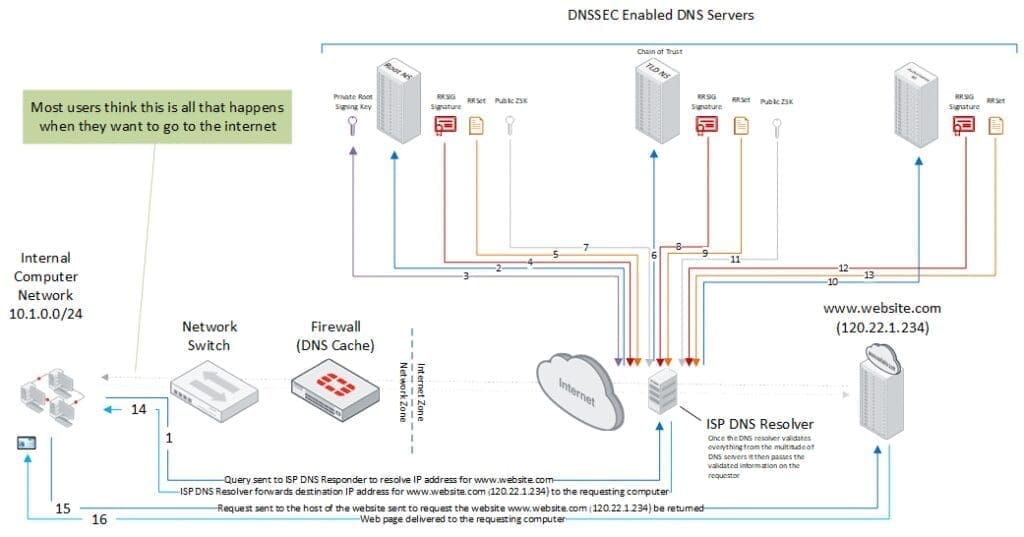

How DNSSEC Works:
DNSSEC uses cryptographic signatures (RRSIG, ZSK, and KSK keys) to ensure every DNS response is authentic and hasn’t been tampered with.
Each DNS zone digitally signs its records.
The chain of trust starts at the Root Zone, verified by a Root Signing Key.
Each layer down (TLD → domain) validates the next using public keys.
The resolver confirms the authenticity of each signature before delivering the IP address.
If anything is altered or forged, the validation fails — protecting users from DNS spoofing or hijacking.

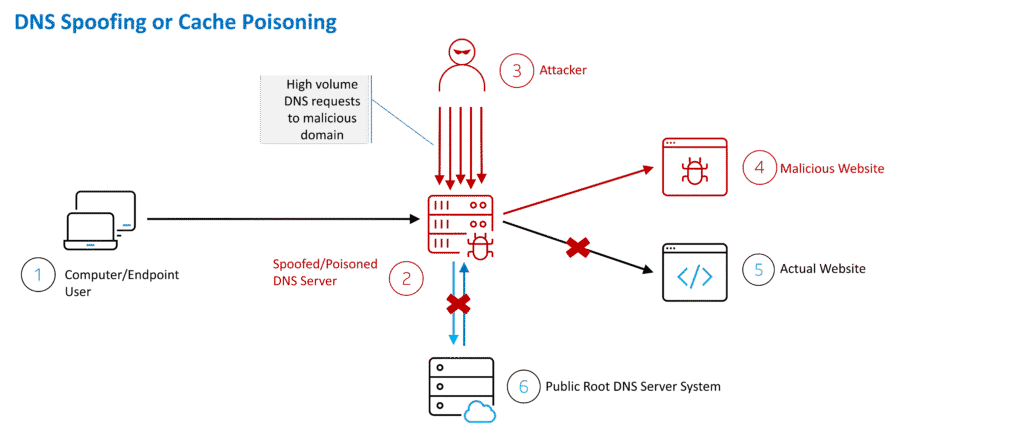

Attackers inject false data into a DNS resolver’s cache, redirecting users to fake or malicious sites — even though the URL looks legitimate.
Example: You type www.bank.com, but the attacker redirects you to a phishing site that looks identical to your bank.

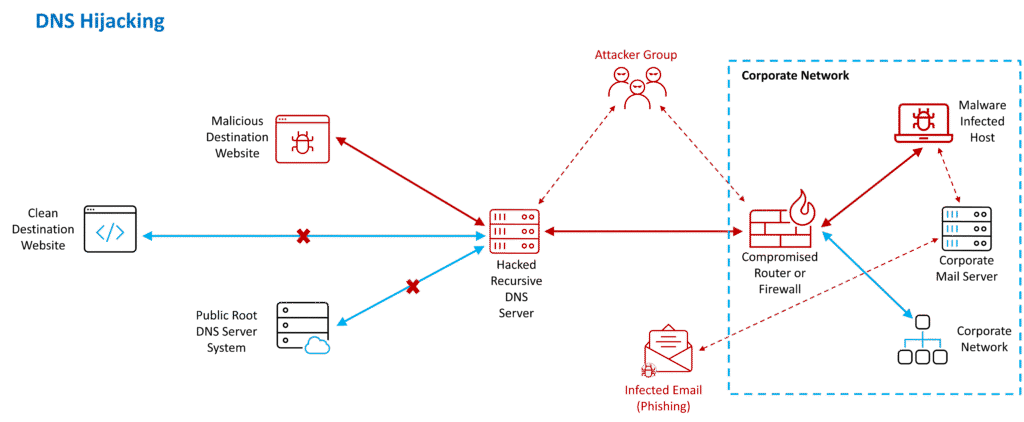

Instead of just poisoning the cache, attackers gain control of the DNS settings themselves — either on your local router, computer, or even the domain registrar.
This allows them to silently redirect all your traffic to rogue servers, often for credential theft or malware delivery.

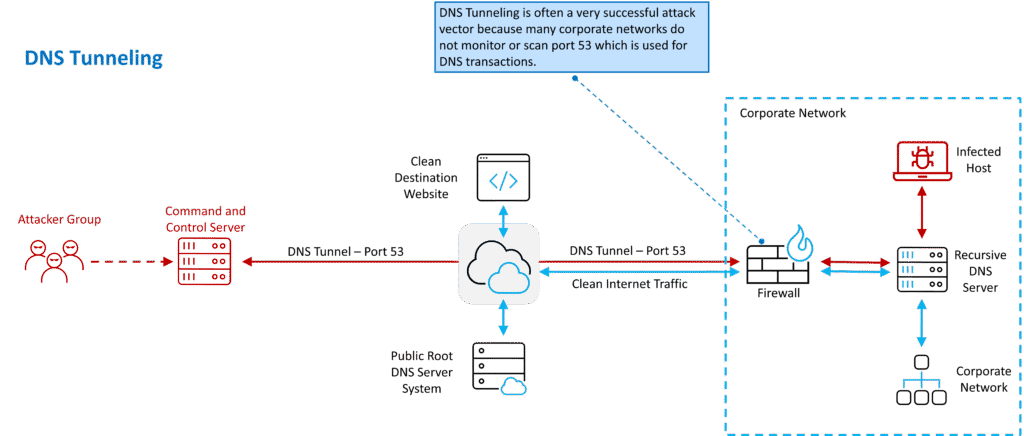

Attackers use DNS queries to hide data exfiltration or command-and-control (C2) communication.
Because DNS is rarely blocked or inspected, it becomes a covert data channel inside corporate networks.

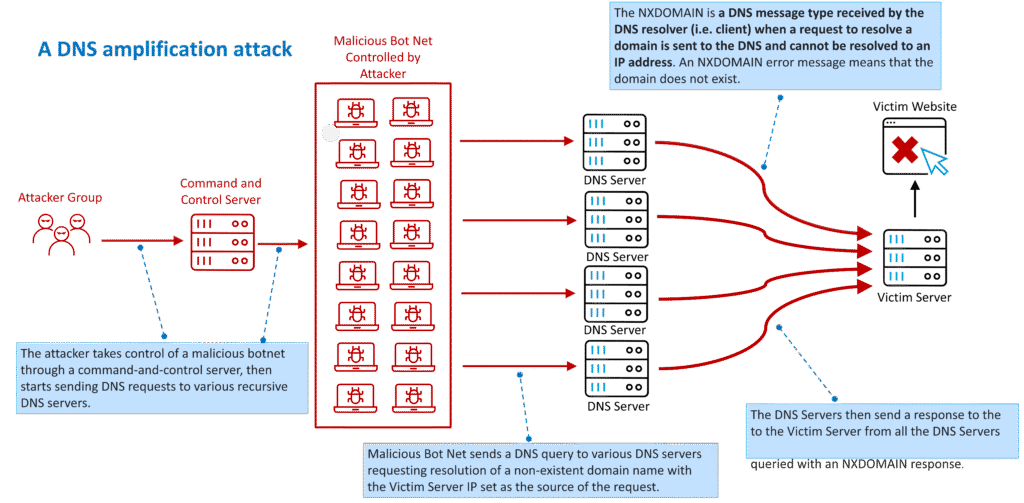

This is a Distributed Denial of Service (DDoS) technique.
Attackers spoof a victim’s IP and send small DNS queries to multiple open DNS servers. Those servers send back large responses to the victim, overwhelming their network bandwidth.
Amplification Factor: A small request can create responses 50x–100x larger, flooding the target with traffic.
Enable DNSSEC on your domains.
Use trusted recursive resolvers (e.g., Google 8.8.8.8, Cloudflare 1.1.1.1, Quad9 9.9.9.9).
Restrict open resolvers to prevent amplification attacks.
Monitor DNS traffic for anomalies (sudden spikes, odd domains, tunneling patterns).
Implement firewall policies and DNS filtering (via Secure Web Gateways or SASE solutions).
Use threat intelligence feeds to block malicious domains.
In today’s environments — especially with SASE (Secure Access Service Edge) and Zero Trust architectures — DNS security plays a crucial role in both network performance and threat prevention.
DNS isn’t just a lookup service anymore.
It’s the first line of defense against many modern attacks.
