In modern cybersecurity architecture, segmentation is not just a best practice—it’s a requirement for maintaining data integrity, controlling access, and reducing the lateral movement of threats. VLANs (Virtual Local Area Networks) form the foundation of segmentation by dividing a physical network into multiple logical broadcast domains.
When done right, network segmentation strengthens compliance alignment (PCI, HIPAA, CJIS, etc.), improves performance, and enables granular policy enforcement across users, applications, and connected devices.
A Virtual LAN (VLAN) allows you to separate traffic within the same physical infrastructure. Instead of relying on multiple switches and routers for each department or function, VLANs use tagging—typically IEEE 802.1Q—to isolate traffic logically.
Example: The HR department can be assigned VLAN 10, while Finance uses VLAN 20. Even though both connect to the same switch, their traffic remains isolated unless explicitly allowed via a Layer 3 gateway or ACL.
Tagging: Each Ethernet frame carries a VLAN ID in the header, indicating which virtual network it belongs to.
Trunking: Switch-to-switch or switch-to-router links (trunks) carry multiple VLANs, preserving their isolation with tagging.

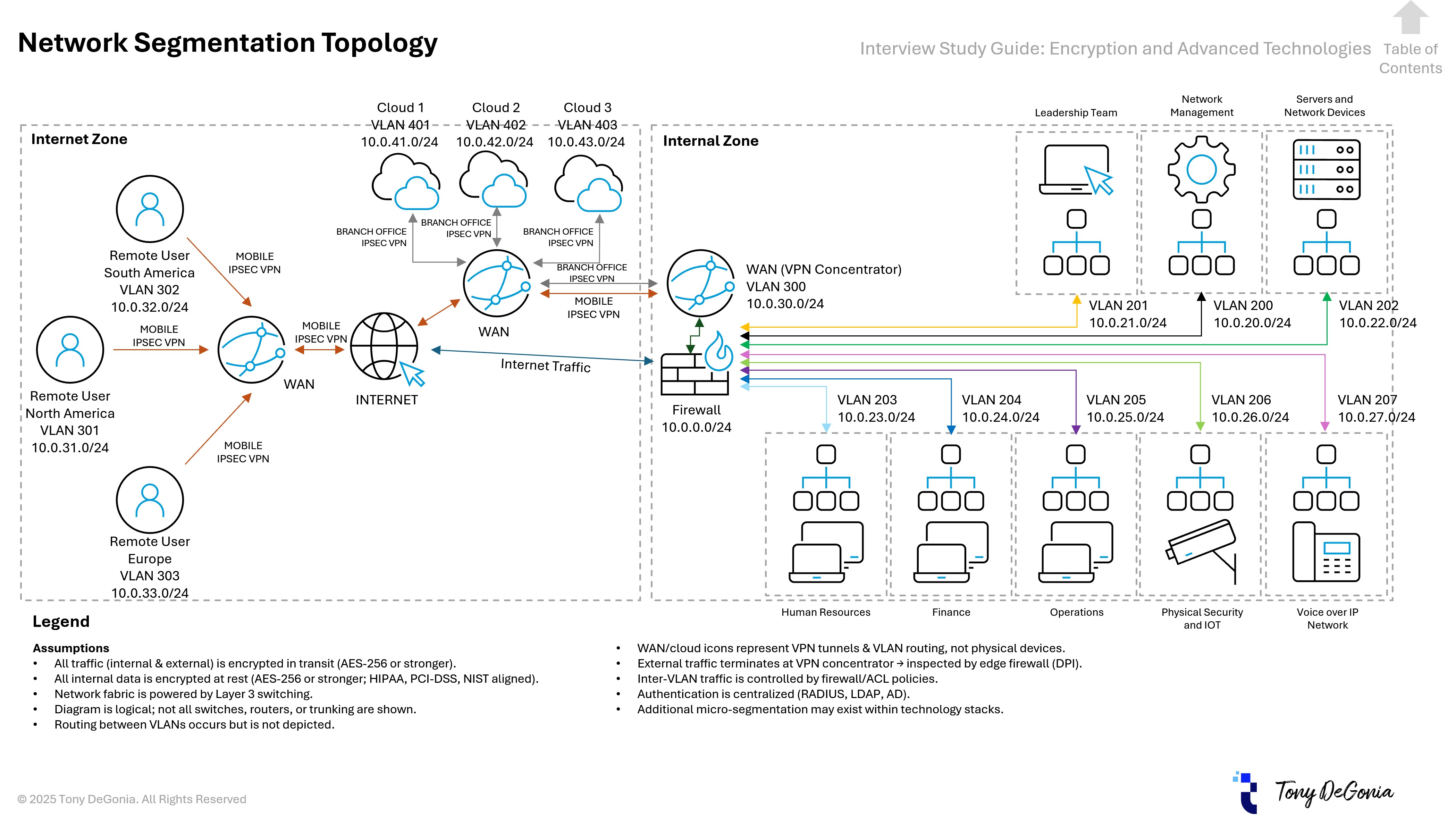

The diagram below illustrates how segmentation separates traffic between user groups, data centers, and external environments.
In this example, user endpoints connect through access switches into segmented VLANs, each mapped to a specific function or security zone. Traffic flows are controlled by firewall policies, routing rules, and encryption layers, ensuring that sensitive systems remain isolated from general user access.
Typical VLAN Assignments:
| IP Range | Segment Type | VLAN ID | Location | Network Name | Equipment Type |
|---|---|---|---|---|---|
| 10.0.0.0/24 | VLAN | 1 | Datacetnter | VLAN Termination | Edge Firewall |
| 10.0.23.0/24 | VLAN | 203 | Corp | Human Resources | PCs/Laptops |
| 10.0.24.0/24 | VLAN | 204 | Corp | Finance | PCs/Laptops |
| 10.0.25.0/24 | VLAN | 205 | Regional | Operations | PCs/Laptops/Handhelds |
| 10.0.26.0.24 | VLAN | 206 | Corp/Regional | Physical Security/IoT | IoT/Cameras/Sensors |
| 10.0.27.0/24 | VLAN | 207 | Datacenter | VoIP Network | VoIP Systems/Handsets |
| 10.0.21.0/24 | VLAN | 201 | Corp | Leadership Team | PCs/Laptops |
| 10.0.20.0/24 | VLAN | 200 | Corp | Network Management | Network Mgmt Tools |
| 10.0.22.0/24 | VLAN | 202 | Datacenter | Servers/Network Devices | Servers/Net Mgmt |
| 10.0.30.0/24 | VPN Termination | 300 | Datacenter | WAN/VPN | WAN.VPN Concentrator |
| 10.0.31.0/24 | Mobile VPN | 301 | North America | Mobile VPN 301 | Mobile VPN/PC/Handheld |
| 10.0.32.0/24 | Mobile VPN | 302 | South America | Mobile VPN 302 | Mobile VPN/PC/Handheld |
| 10.0.33.0/24 | Mobile VPN | 303 | Europe | Mobile VPN 303 | Mobile VPN/PC/Handheld |
| 10.0.41.0/24 | Site-Cloud VPN | 401 | AWS | Site-Cloud 1 | Virtual Firewall 1 |
| 10.0.42.0/24 | Site-Cloud VPN | 402 | Azure | Site-Cloud 2 | Virtual Firewall 2 |
| 10.0.43.0/24 | Site-Cloud VPN | 403 | GCP | Site-Cloud 3 | Virtual Firewall 3 |
Security Isolation: Prevents attackers from easily moving laterally between systems.
Performance Optimization: Reduces unnecessary broadcast traffic within VLANs.
Simplified Management: Easier to apply access control lists (ACLs) and quality-of-service (QoS) policies per VLAN.
Regulatory Compliance: Meets security framework requirements (NIST, PCI-DSS, HIPAA).
Incident Containment: Breaches in one VLAN remain confined, minimizing overall impact.
Microsegmentation: Extends segmentation down to individual workloads or virtual machines using software-defined networking (SDN) and identity-based policies (common in SSE/SASE architectures).
Zero Trust Enforcement: Every segment is treated as untrusted; all access requires verification and least-privilege permissions.
Encryption at Segmentation Boundaries: Traffic between VLANs or over WAN links should leverage IPSec, GRE, or SSL/TLS tunnels—illustrated in the diagram—to ensure confidentiality across hybrid environments.
VLANs are the first step in a layered defense strategy. When combined with firewalls, endpoint protection, and identity-aware policies, they transform a flat network into a multi-tiered, resilient security fabric.
Whether designing for enterprise, education, or public sector environments, segmentation ensures that your network not only performs efficiently but also aligns with the core principles of Zero Trust and Defense-in-Depth.
